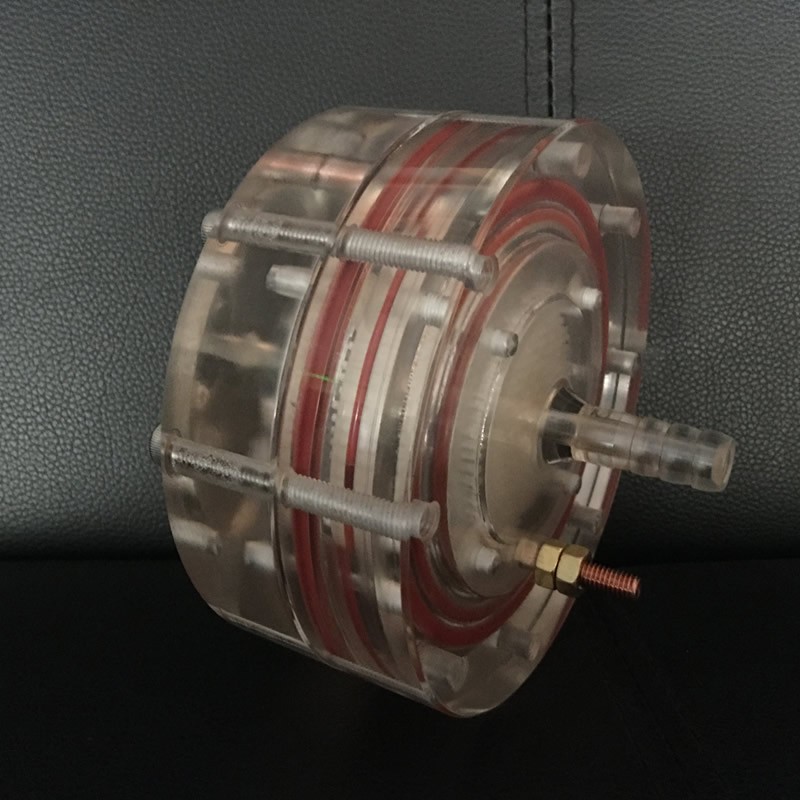

Water treatment electrocatalytic membrane reactor

An electrocatalyst membrane Reactor used for water treatment includes a container-shaped shell with a water inlet and a water outlet. A filter membrane is provided inside the shell, and the filter membrane connects the shell water inlet to the water outlet The flow path is separated, characterized in that the filter membrane is a cathode electrocatalyst membrane, and an anode electrode layer spaced apart from the cathode electrocatalyst membrane is also provided in the casing. The anode electrode layer has a mesh structure and is located at a distance from the cathode electrocatalyst membrane Before the two can produce an electrocatalytic reaction within the effective distance range, the cathode electrocatalyst membrane is connected to the cathode lead outside the casing for connecting to the negative electrode of the power supply, and the anode electrode layer is connected to the anode lead outside the casing for connecting to the positive electrode of the power supply The housing is also provided with an oxidant source inlet that can communicate with the cathode electrocatalyst membrane.
