Kettle type continuous reaction device

product manual

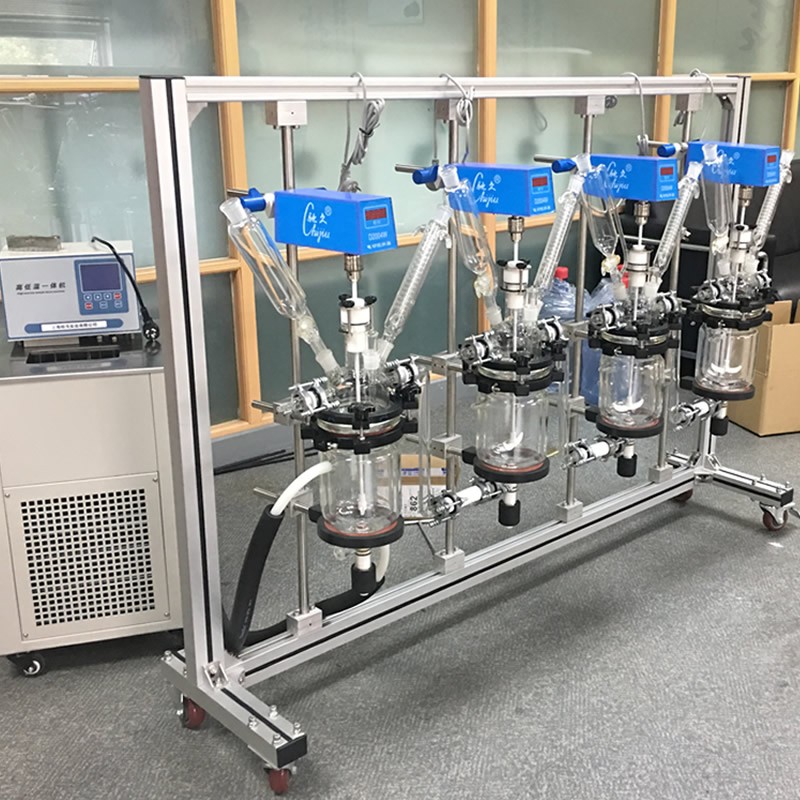

Shanghai Guigo Industrial Co., Ltd. launched a continuous double-layer glass Reactor (kettle-type continuous reaction device), which is mainly used for small samples, medium sample experiments, ideal equipment for biopharmaceuticals and synthesis of new materials. It can do continuous reaction at high temperature and continuous reaction at low temperature.

Features

● The full set of glass adopts high borosilicate glass material.

● Double-layer jacketed glass, can do high temperature and low temperature reaction.

● Digital display mixer, which can be stirred regularly.

● The reaction process can be temperature controlled or shut down for a single reactor.

● The bottom discharge port of the glass reactor has a flange port and a PTFE valve. There is no dead angle in the container, and it can be disassembled to facilitate the discharge of solid materials.

● Four-port reaction kettle cover can be connected to condenser, thermometer and stirrer.

● The reaction kettle adopts PTFE soft connection, which is corrosion resistant.

● The expansion of the reaction kettle is relatively large, and ultrasonic, photocatalytic and other functions can be connected according to the requirements.

Technical Parameters

●Volume: 1L*4 (series connection)

●Temperature control range: -25-250℃

●Feeding method: metering pump (matched on demand)

●Bracket material: aluminum profile (4040)

●Stirring method: mechanical stirring (adjustable speed)

●Anti-corrosion characteristics: the connection point is made of PTFE
