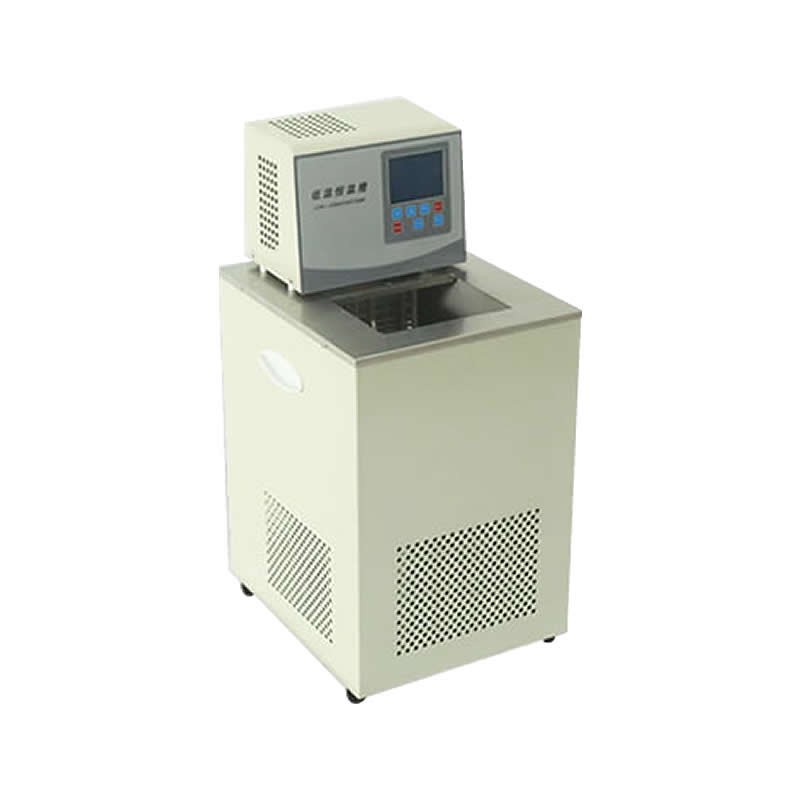

-5-100℃ Low temperature thermostat

Low-temperature thermostats are widely used in petroleum, chemical industry, electronic instruments, physics, chemistry, biological engineering, medicine and health, and life sciences.

Product manual

DC series low temperature constant temperature baths are widely used in research departments of petroleum, chemical industry, electronic instruments, physics, chemistry, biological engineering, medicine and health, life sciences, light industry food physical testing and chemical analysis, colleges and universities, enterprise quality inspection and production departments , Provide a field source with controlled cold and heat, uniform and constant temperature for users at work, conduct constant temperature experiments or tests on experimental samples or products produced, and can also be used as a heat source or cold source for direct heating or cooling and auxiliary heating or cooling.

Main features

Special software research and development self-made temperature control technology, equipped with high-standard PT100 and fully imported electronic components.

The software system is convenient to correct the error between the displayed temperature and the actual temperature, and the resolution of temperature correction is up to 0.01, so that the displayed temperature value is accurate.

With over-temperature protection, over-temperature buzzer alarm, over-temperature alarm temperature can be set, and the load can be automatically cut off when over-temperature.

Intelligent software has strong temperature stability, PID can automatically set the best parameters according to different media, and special users can also adjust the parameters manually.

Use software to digitally lock the setting values of the control system to avoid misoperation by irrelevant personnel and ensure that the experimental data is correct.

Accurate temperature control makes the temperature in the working tank stable quickly.

Press the "power" key to turn off all functions of the instrument, but the instrument can also display the process of natural temperature rise and fall in the tank.

Refrigerating system

High-efficiency fully enclosed compressor refrigeration, fast cooling speed, with multiple protections such as overheating and overcurrent.

Circulatory system

Advanced inner circulation and outer circulation system. The inner circulation makes the temperature uniform and stable. The outer circulation pump outputs 6L/min, 13L/min constant temperature liquid to establish a second constant temperature field outside the machine, and can also be used as a cold source to cool outside the machine Experimental container.

Technical parameter

Model

Temperature   range

(℃)

Temperature   fluctuation

(℃)

Digital   display resolution

(℃)

Working   tank volumemm3

Working   slot openingmm2

Groove   depth

mm)

Circulating   pump flow

L/min)

Dimensions

mm

Price

(RMB)

DC-0506

5100

±0.05

0.01

250×200×150

180×140

150

6

320x370x655

7600

DC-0510

5100

±0.05

0.01

250×200×200

180×140

200

6

320x370x765

8800

DC-0515

5100

±0.05

0.01

300×250×200

235×160

200

6

320x370x765

10800

DC-0520

5100

±0.05

0.01

280×250×300

235×160

300

6

400x450x910

13200

DC-0530

5100

±0.05

0.01

420×330×230

310×280

230

13

405x535x935

17800

SDC-6

5100

±0.05

0.01

250×200×150

180×140

150

6

320x370x655

7600
