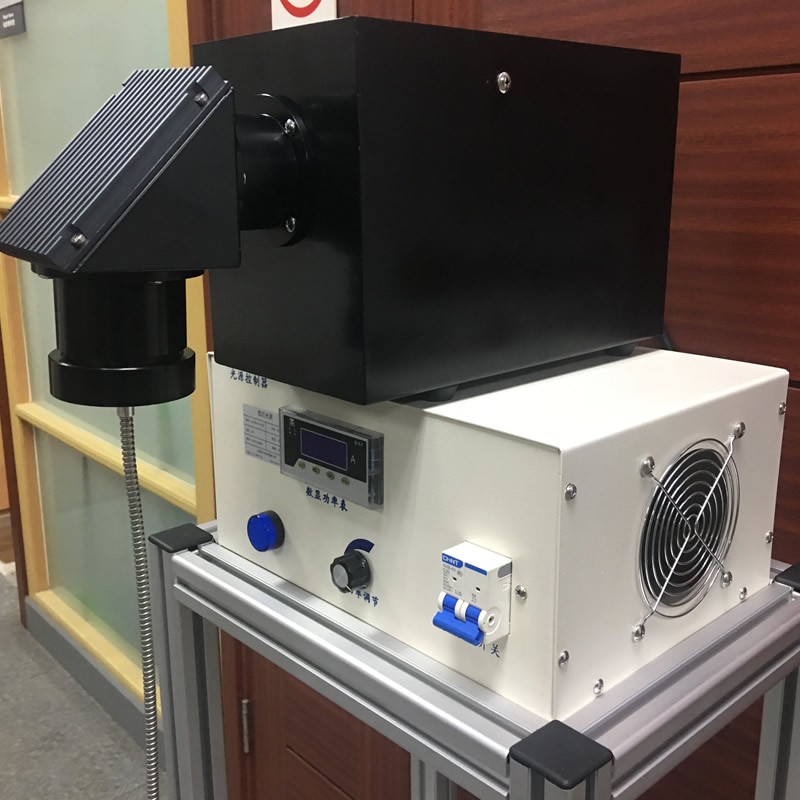

Xenon light source

Xenon lamp light source is widely used in research fields such as photolysis of water to produce hydrogen, photodegradation of pollutants, various simulated sunlight visible light acceleration experiments, various simulated sunlight ultraviolet band acceleration experiments.

product manual

Xenon lamp light source is widely used in research fields such as photolysis of water to produce hydrogen, photodegradation of pollutants, various simulated sunlight visible light acceleration experiments, various simulated sunlight ultraviolet band acceleration experiments. The light source can achieve high energy density and continuous irradiation for a long time. Combining various filters can realize a variety of combined methods to achieve narrow band catalyst improvement effect evaluation and broadband pass overall catalyst effect evaluation. The product can be used with a variety of Reactors (systems) to complete online and offline analysis experiments of solid, liquid, and gas phases.


Main features

●Special 300W xenon lamp steady current power supply.

●Light box and cooling module.

●Steering head and filter device.

●Transmission-reflection filter (visible high reflection).

●The original imported 300W xenon lamp.

●Equipped with lifting device.

●The control chassis has an external interface for optical feedback, which can increase the optical feedback circuit and increase the stability of the light.


technical parameter

◆Xenon lamp wavelength range: 190~1100nm

◆ Bulb power: 300W (import).

◆Power adjustment range: 150~300W continuously adjustable.

◆Lamp life: not less than 1500H (full power operation).

◆Current: 22A.

◆Total optical power: 50W.

◆Parallel light spot diameter: 30~52mm (depending on irradiation distance).

◆Divergence angle of parallel light: 6° on average.

◆ Form of heat dissipation: imported metal fan + metal heat dissipation module.

◆Light collection form: ellipsoid total reflection

◆Diameter of optical window: 24.0mm (round spot)

◆Working spot diameter: 40-52mm (round spot)

◆Light output form: horizontal, vertical irradiation or arbitrary angle irradiation (free rotation along the optical axis)

◆Vertical downward after turning at 45 degrees of incidence (also horizontal irradiation)

◆Infrared transmission: Transmittance is not less than 80%, wavelength range: 800nm-1100nm

◆Visible reflection: the reflectivity is not less than 95%, the wavelength range: 350nm-780nm

◆Filter placement device: yes, diameter 52mm

◆Optical fiber: optional

◆Standard configuration: dedicated 300W xenon lamp steady flow power supply light box, heat dissipation module, steering head and filter device, transmission-reflection filter (visible high reflection), lifting table.
